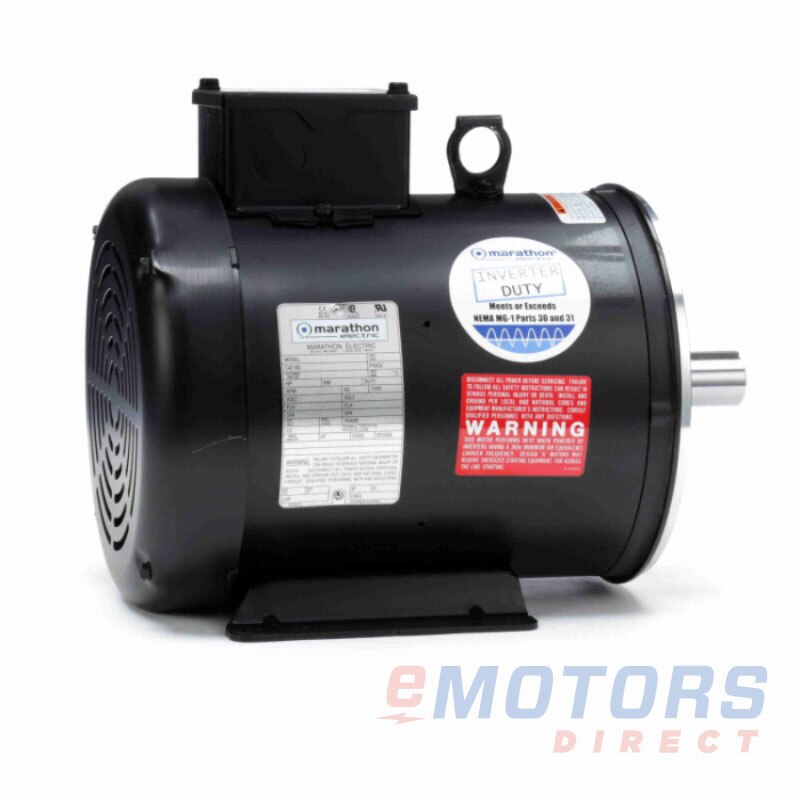

Marathon Y1372

Marathon · MicroMAX™
5 HP 1760 184TC TEFC 230V|460V General Purpose
Catalog Number: Y1372
Model Number: 184THFW7726
HP
5
RPM
1800
Voltage
230V,460V
Frame
184TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Face those tough industrial applications with Marathon Motors’ 1000:1 turndown motors. These inverter duty motors can take on the contaminated environments of manufacturing and fabrication while providing the constant torque you need. Select your VFD-ready motor from a range of rating options.

Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

Description

Designed for direct replacement of PMDC or any other variable speed application where up to a 1000:1 constant torque speed range is required. Typical uses include: machine tools, conveyors, packaging machines, batching machines, and printing equipment.

Feature

  • Designed to replace PMDC motors (when used with a VFD)
  • Constant horsepower to twice base speed (RPM)
  • Class H insulation with CR200 corona resistant magnet wire
  • Continuous duty at 40ºC ambient
  • Top mounted conduit box as found on PMDC motors
  • Eliminates brush and commutator maintenance
  • UL recognized, CSA certified, and CE mark
  • Three year warranty
Electrical Data
Rated Motor Output Power
5 HP
3.75 kW
Rated Motor Speed
1760 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
13.0/6.5 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
J
Nominal Efficiency
87.5
Nominal Power Factor
81.6
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
92lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.97"
NEMA Design
-
Degree of Protection (IP)
IP43
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
3"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
3-Year
