Product images are for reference only. Please review product specifications for the most accurate and detailed information.

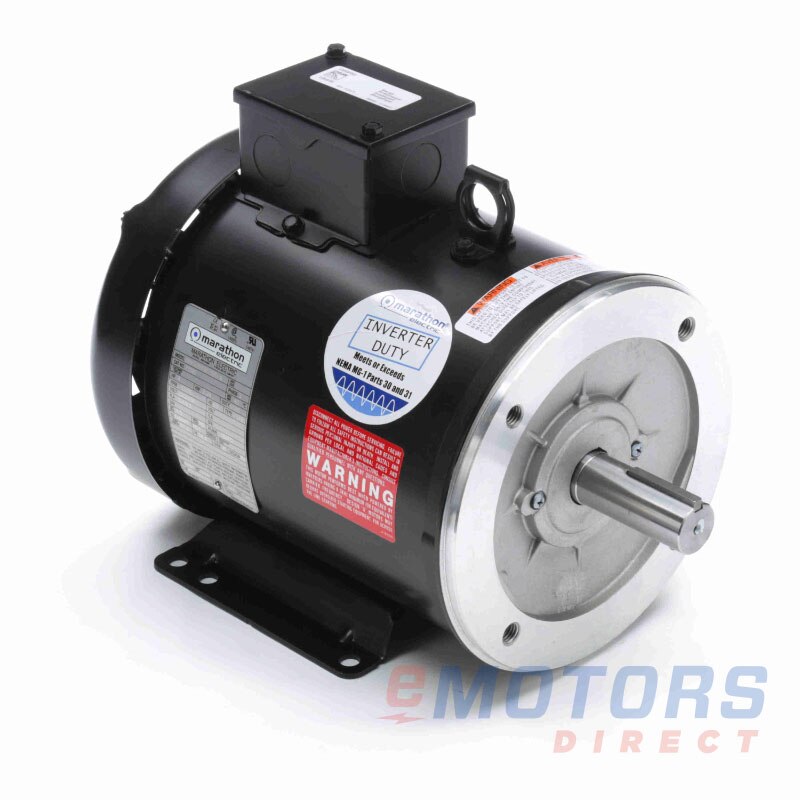

Marathon Y999

Marathon · MicroMAX™
3 HP 1760 182TC TEFC 230V|460V General Purpose
Catalog Number: Y999
Model Number: 182THFR7729
HP
3
RPM
1800
Voltage
230V,460V
Frame
182TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Face those tough industrial applications with Marathon Motors’ 1000:1 turndown motors. These inverter duty motors can take on the contaminated environments of manufacturing and fabrication while providing the constant torque you need. Select your VFD-ready motor from a range of rating options.

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

Description

Designed for direct replacement of PMDC or any other variable speed application where up to a 1000:1 constant torque speed range is required. Typical uses include: machine tools, conveyors, packaging machines, batching machines, and printing equipment.

Feature

  • Designed to replace PMDC motors (when used with a VFD)
  • Constant horsepower to twice base speed (RPM)
  • Class H insulation with CR200 magnet wire
  • Continuous duty at 40ºC ambient
  • Top mounted conduit box found on PMDC motors
  • Eliminates brush and commutator maintenance
  • UL Recognized, CSA Certified, and CE Mark
  • Three year warranty
Electrical Data
Rated Motor Output Power
3 HP
2.25 kW
Rated Motor Speed
1760 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
8.4/4.2 AMP
Phase
3
Poles
4
Locked Rotor Current
32
Fl Current @ 208V
-
Service Factor
-
KVA Code
K
Nominal Efficiency
-
Nominal Power Factor
76
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
86lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
16.19"
NEMA Design
A
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
3-Year
