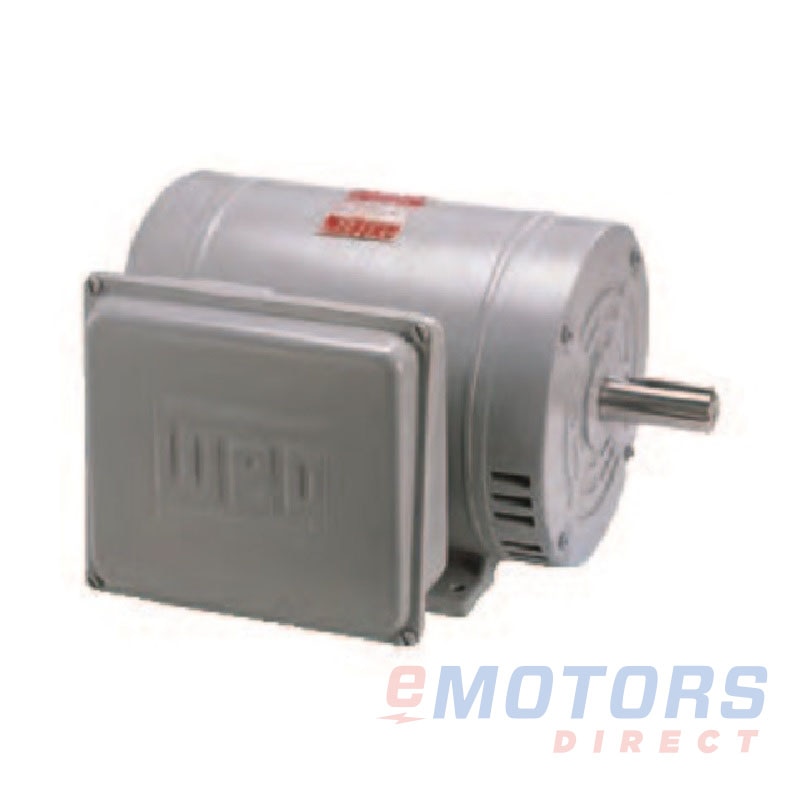

WEG DP007102

WEG · Single Phase 180T/210T Frame
7 1/2 HP 3600 184T ODP 230V General Purpose
Catalog Number: DP007102
HP
7 1/2
RPM
3600
Voltage
208-230V
Frame
184T
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid
CAD$1,455.30
Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (3)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Nidec D7C1K

    7 1/2 HP 3490 184T Fr ODP 230V General Purpose

    CAD $835.80
    Ships next business day

  • Leeson 132044.00

    7 1/2HP 3450 184T ODP 208-230V General Purpose

    CAD $980.62
    Ships next business day

  • Nidec D7C1K18

    7 1/2 HP 3550 184T Fr ODP 208V|230V General Purpose

    CAD $1,247.40
    In Stock (2 - 3 weeks)

WEG: Single Phase 180T/210T Frame (8)

DP00310431750115V, 208-230V184T $1,016.28
DP00310233520115V, 208-230V182T $1,016.28
DP005104S51750208-230V184T $1,115.73
DP00510253500208-230V184T $1,115.73
CP00310431750115V, 208-230V184TC $1,149.69
CP00310233520115V, 208-230V182TC $1,149.69
DP0071027 1/23500208-230V184T $1,455.30
CP0071027 1/23500208-230V184TC $1,589.92

Feature

  • Single-phase, 2, 4 poles, 60HZ, Service Factor 1.15
  • Voltage: 208-230V or 115/208-230V & 460V (5HP and up)
  • Open Drip Proof (IP22), fan cooled
  • Continuous Duty (S1)
  • 104°F (40°C) ambient temperature
  • Altitude: 3300 ft (1000 m)
  • 1045 carbon steel shaft
  • F1 mounting T-box

eMotors Direct’s stock of general purpose electric motors are for use in various applications across numerous industries. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.

Our general purpose motor category covers many types of electric motors like single-phase and three-phase general purpose AC motor, for example. Choose a motor with a frame made from materials like cast iron, rolled steel, aluminum, and stainless steel. Find horsepower abilities from fractional up to 600. Choose from different enclosure types, like open Air Over (OAO), Open Drip Proof (ODP), Totally Enclosed Air Over (TEAO), Totally Enclosed Fan Cooled (TEFC), and Totally Enclosed Non-Ventilated (TENV). All from your most trusted brands; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.

Shop general purpose electric motors online through our Canadian website today. With over 8500 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
7 1/2 HP
5.5 kW
Rated Motor Speed
3500 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
30 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
33.15
Service Factor
1.25
KVA Code
-
Nominal Efficiency
85
Nominal Power Factor
95
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
115lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
14.87"
NEMA Design
-
Degree of Protection (IP)
IP22
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206-ZZ
NDE Bearing
6205-ZZ
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
