WEG FC000102W01DOE

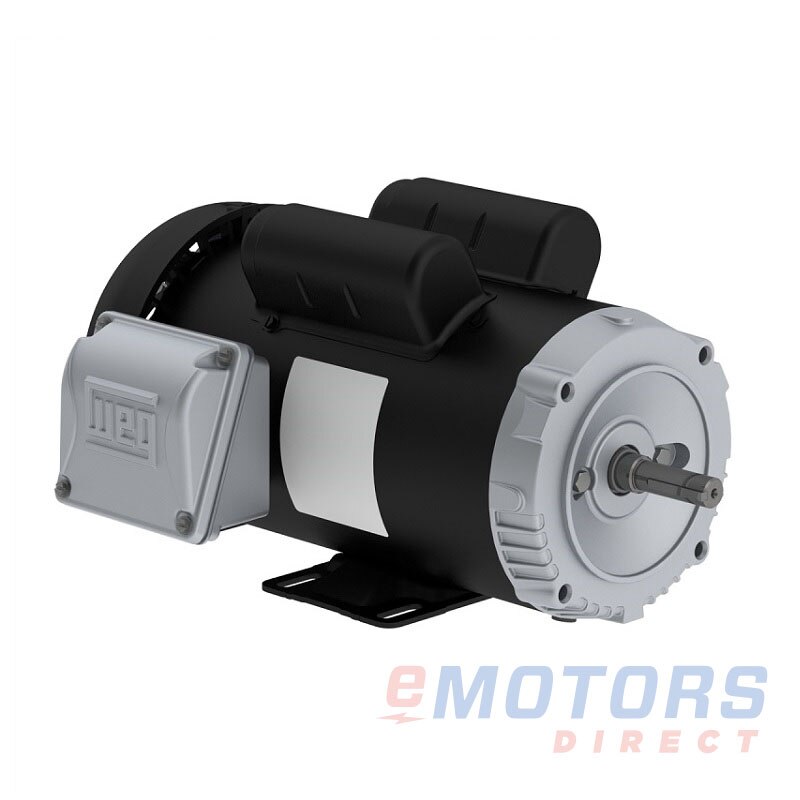

WEG · W01 NEMA Premium TEFC 1PH 56 Frame
1 HP 3600 56C TEFC 115V|230V General Purpose
Catalog Number: FC000102W01DOE
Spec Number: 13926797
HP
1
RPM
3600
Voltage
115V, 208-230V
Frame
56C
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid
CAD$475.79
Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (6)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Marathon D313

    1 HP 3600 56C TEFC 115V|208-230V General Purpose

    CAD $355.60
    Ships next business day

  • Nidec T1C1JC

    1 HP 3450 56C Fr TEFC 115V|208-230V General Purpose

    CAD $411.60
    Ships next business day

  • Leeson 115877.00

    1 HP 3600 56C TEFC 115V|230V General Purpose

    CAD $533.99
    Ships next business day

  • Baldor CL3509

    1 HP 3600 56C TEFC 115V|230V General Purpose

    CAD $595.29
    Ships next business day

  • Baldor L3509-50-C

    1 HP 3000 56C TEFC 110V|220V General Purpose

    CAD $918.74
    Ships in 3 to 5 business days

  • Leeson 110180.00

    1 HP 3600 56C TEFC 115V|230V General Purpose

    CAD $533.99
    Contact us for delivery dates

WEG: W01 NEMA Premium TEFC 1PH 56 Frame (30)

TF.25102W01DOE1/43510115V, 208-230V56 $281.95
TF.33102W01DOE1/33505115V, 208-230V56 $293.70
TF.50102W01DOE1/23510115V, 208-230V56 $326.59
TF.33104W01DOE1/31745115V, 208-230V56 $334.82
TF.25104W01DOE1/41745115V, 208-230V56 $334.82
TF.75102W01DOE3/43510115V, 208-230V56 $343.04
FC.25102W01DOE1/43510115V, 208-230V56C $344.22
FC.33102W01DOE1/33505115V, 208-230V56C $354.79
FC.50102W01DOE1/23510115V, 208-230V56C $387.68
FC.33104W01DOE1/31745115V, 208-230V56C $397.08
FC.75102W01DOE3/43510115V, 208-230V56C $404.13
FC.25104W01DOE1/41745115V, 208-230V56C $404.13
TF.50104W01DOE1/21740115V, 208-230V56 $404.13
TF000102W01DOE13505115V, 208-230V56 $413.53
FC.50104W01DOE1/21740115V, 208-230V56C $466.40
FC000102W01DOE13505115V, 208-230V56C $475.79
TF.75104W01DOE3/41750115V, 208-230V56 $519.26
TF000104W01DOE11750115V, 208-230V56 $526.31
TF001102W01DOE1 1/23500115V, 208-230V56 $532.18
FC.75104W01DOE3/41750115V, 208-230V56C $581.53
FC000104W01DOE11750115V, 208-230V56C $588.57
FC001102W01DOE1 1/23500115V, 208-230V56C $594.45
TF002102W01DOE23500115V, 208-230V56H $648.49
TF001104W01DOE1 1/21745115V, 208-230V56 $670.81
FC002102W01DOE23500115V, 208-230V56HC $710.75
FC001104W01DOE1 1/21745115V, 208-230V56C $731.90
TF002104W01DOE21735115V, 208-230V56H $814.14
TF003102W01DOE33500115V, 208-230V56H $847.03
FC002104W01DOE21735115V, 208-230V56HC $876.40
FC003102W01DOE33500115V, 208-230V56HC $909.30

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and Premium efficiency, these versatile motors provide torque and durability for the severest applications.

Feature

  • Motors are compliant with DOE and NRCAN
  • Single-phase, 2, 4 and 6 poles, 60HZ, Service Factor 1.15
  • Voltage:115/208-230V
  • Class “F” insulation for all frames.
  • NEMA design “B”
  • Continuous Duty (S1)
  • 104°F (40°C) ambient temperature
  • Start capacitor/Run capacitor

eMotors Direct’s stock of general purpose electric motors are for use in various applications across numerous industries. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.

Our general purpose motor category covers many types of electric motors like single-phase and three-phase general purpose AC motor, for example. Choose a motor with a frame made from materials like cast iron, rolled steel, aluminum, and stainless steel. Find horsepower abilities from fractional up to 600. Choose from different enclosure types, like open Air Over (OAO), Open Drip Proof (ODP), Totally Enclosed Air Over (TEAO), Totally Enclosed Fan Cooled (TEFC), and Totally Enclosed Non-Ventilated (TENV). All from your most trusted brands; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.

Shop general purpose electric motors online through our Canadian website today. With over 8500 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1 HP
0.75 kW
Rated Motor Speed
3505 RPM
Rated Motor Voltage
115V, 208-230V
Rated Motor Current
4.66/4.37 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
4.83
Service Factor
1.15
KVA Code
-
Nominal Efficiency
78.5
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
36.5lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
13.902"
NEMA Design
N
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6204-ZZ
NDE Bearing
6202-ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cULus
Country of Origin
BRAZIL
Warranty
2-Year
