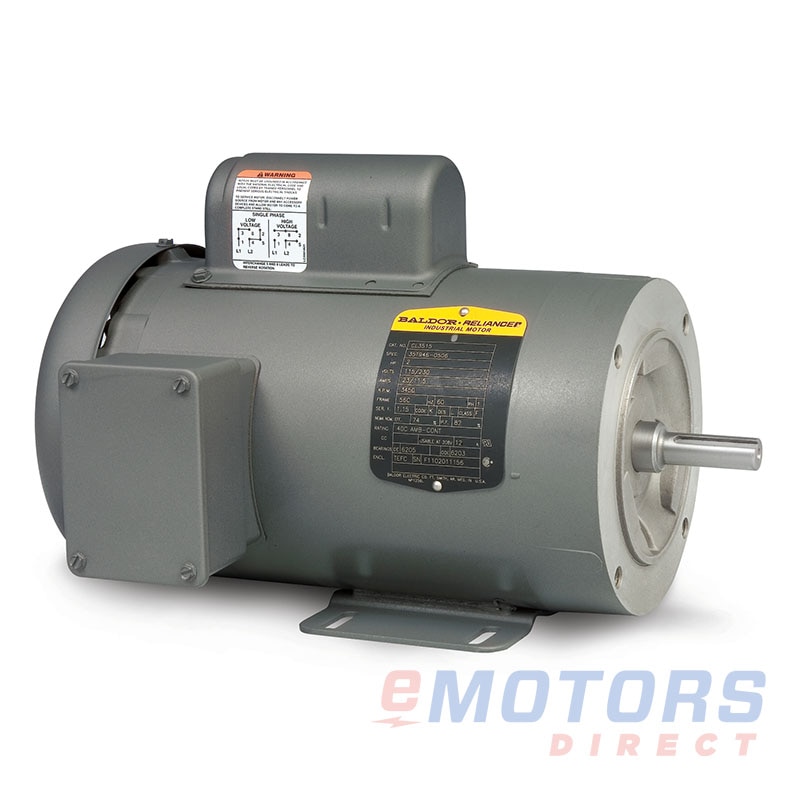

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor CL3509

Baldor · General Purpose, single phase, TEFC, C-face foot mounted
1 HP 3450 56C TEFC 115V|208-230V General Purpose AC Motors
Catalog Number: CL3509
HP
1
RPM
3600
Voltage
115V, 230V
Frame
56C
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor general-purpose motor is a versatile, single-phase, TEFC, C-face foot-mounted motor designed for a variety of industrial applications. It features a low-noise, vibration-dampening base that ensures quiet, reliable performance while the dynamically balanced rotor enhances bearing longevity. The motor’s superior switch design optimizes torque delivery for smoother operation and greater efficiency. Built with robust, heavy-gauge steel, this motor offers exceptional durability and is suitable for use in fans, air handling systems, conveyors, pumps, material handling operations, and industrial machinery.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: Out of Stock
Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

General Purpose, single phase, TEFC, C-face foot mounted

Features

  • Low-noise, vibration-dampening base ensures smooth operation
  • Dynamically balanced rotor design to prolong bearing life
  • Advanced switch technology for optimized torque delivery
  • Heavy-duty steel construction for superior durability

Applications

  • Ventilation and fan systems
  • Air handling units
  • Conveyor machinery
  • Pump systems
  • Material handling equipment
  • Industrial machine tools
Electrical Data
Rated Motor Output Power
1 HP
Rated Motor Speed
3600 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
5.9 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
K
Nominal Efficiency
68
Nominal Power Factor
82
Leads (Qty, Size)
4
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.25"
NEMA Design
N
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
