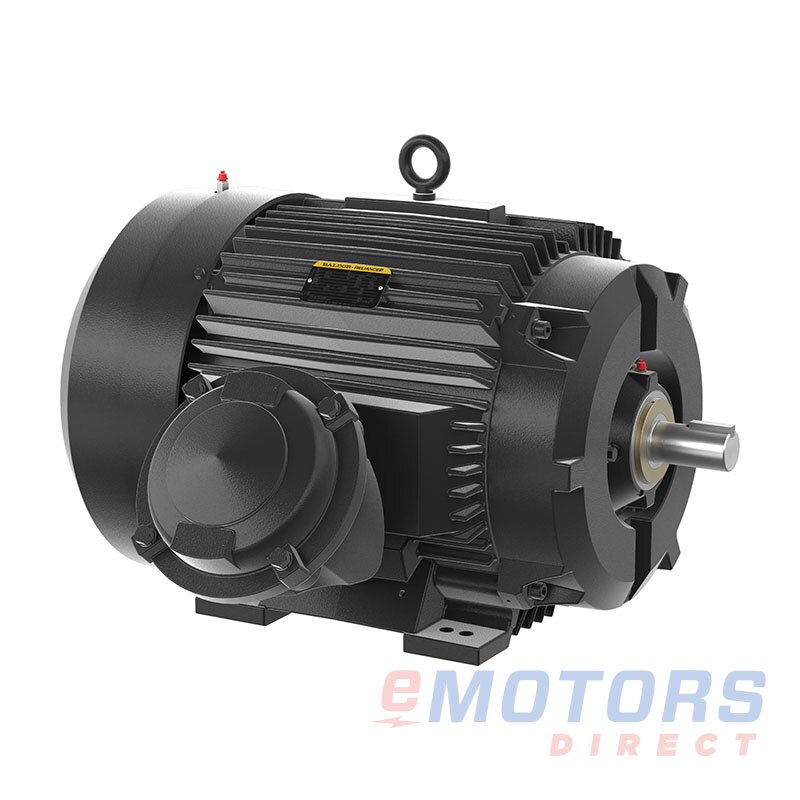

Baldor CPX36626T

Baldor · Explosion Proof, Severe duty, three phase, foot mounted
60 HP 3560 364TS TEFC-XP 230V|460V Explosion Proof Motors for Hazardous Locations
Catalog Number: CPX36626T
Spec Number: A36-7813-1558
HP
60
RPM
3600
Voltage
230V, 460V
Frame
364TS
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Baldor Explosion Proof Severe Duty three-phase, foot-mounted motor is designed for reliable performance in the harshest environments. Constructed with all cast iron, it offers durability and strength, while its inverter duty rating ensures dependable operation. The motor features a 1.15 service factor with Class F insulation, suitable for 40°C ambient conditions, and can handle up to 55°C ambient temperatures at a 1.0 service factor. Equipped with Group E brass labyrinth shaft slingers, normally closed thermostats for thermal protection, and UL-approved breather drains, this motor provides added safety and performance. Its IP55 rating is available for frame sizes up to 320, with an IP66 rating for frame sizes 360 and larger. Ideal for use in Division 1 hazardous areas, this motor is perfect for applications in pulp and paper, wastewater, chemical, oil, and gas industries, and supports both fixed and variable speed operations.
Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Baldor: Explosion Proof, Severe duty, three phase, foot mounted (45)

CPX14146T11760230V, 460V143T $1,850.76
CPX141546T1 1/21765230V, 460V145T $1,879.87
CPX14246T21750230V, 460V145T $1,927.43
CPX18346T31755230V, 460V182T $2,053.80
CPX18546T51750230V, 460V184T $2,438.58
CPX18326T33470230V, 460V182T $2,565.65
CPX18526T53500230V, 460V184T $3,007.93
CPX21746T7 1/21770230V, 460V213T $3,091.70
CPX21366T31165230V, 460V213T $3,449.50
CPX21726T73510230V, 460V213T $3,469.38
CPX21126T103490230V, 460V215T $3,641.18
CPX21566T51160230V, 460V215T $3,828.60
CPX251526T153530230V, 460V254TY $4,117.54
CPX21146T101765230V, 460V215T $4,253.84
CPX25766T7 1/21180230V, 460V254TY $4,367.43
CPX251546T151765230V, 460V254TY $4,824.62
CPX25166T101180230V, 460V256TY $5,251.28
CPX25226T203530230V, 460V256TY $5,629.67
CPX25246T201770230V, 460V256TY $6,249.43
CPX282526T253520230V, 460V284TSY $7,259.64
CPX282546T251775230V, 460V284T $7,581.95
CPX281566T151175230V, 460V284TY $8,463.67
CPX28266T201180230V, 460V286TY $8,689.42
CPX28326T303520230V, 460V286TSY $8,842.05
CPX28346T301770230V, 460V286T $9,243.16
CPX322566T251180230V, 460V324TY $10,864.62
CPX32426T403540230V, 460V324TSY $11,014.41
CPX32366T301180230V, 460V326TY $11,987.00
CPX32446T401775230V, 460V324TY $12,388.10
CPX36466T401190230V, 460V364T $13,892.42
CPX32526T503560230V, 460V326TSY $14,102.56
CPX32546T501775230V, 460V326TY $14,380.14
CPX36566T501185230V, 460V365T $15,680.00
CPX36626T603560230V, 460V364TS $16,009.41
CPX36646T601780230V, 460V364T $16,083.95
CPX36726T753555230V, 460V365TS $16,696.61
CPX36746T751780230V, 460V365T $17,691.92
CPX40666T601185230V, 460V404T $19,830.91
CPX40766T751185230V, 460V405T $20,539.41
CPX40146T1001780230V, 460V405T $20,546.50
CPX44166T1001188230V, 460V444T $23,554.46
CPX441246T1251785460V444T $23,947.22
CPX441546T1501785460V445T $26,762.32
CPX44246T201785460V447T $37,030.21
CPX442546T2501785460V449T $44,436.39

Explosion Proof, Severe duty, three phase, foot mounted

Features

  • Heavy-duty all cast iron construction for durability
  • Inverter duty rated for reliable performance
  • 1.15 service factor with Class F insulation, designed for 40°C ambient conditions
  • Capable of handling 55°C ambient temperatures at a 1.0 service factor
  • Group E brass labyrinth shaft slingers for added protection
  • Normally closed thermostats for thermal protection
  • Threaded lead inlet for secure and easy wiring
  • UL-approved breather drains for enhanced ventilation
  • IP55 rating for frame sizes up to 320, IP66 for 360 and larger

Applications

  • Ideal for pulp and paper industries
  • Designed for Division 1 hazardous locations as specified by the customer
  • Perfect for wastewater applications
  • Supports both fixed and variable speed operations
  • Suitable for chemical, oil, and gas industries
Electrical Data
Rated Motor Output Power
60 HP
45 kW
Rated Motor Speed
3560 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
130/65.1 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
G
Nominal Efficiency
93.6
Nominal Power Factor
91
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0
Constant Torque
10:1
6
General Data
Frame
364TS
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
31.35"
NEMA Design
B
Degree of Protection (IP)
IP65
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
1.875"
Shaft Length
3.54"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cCSAus, CSA, CSA EEV, UL
Country of Origin
USA
