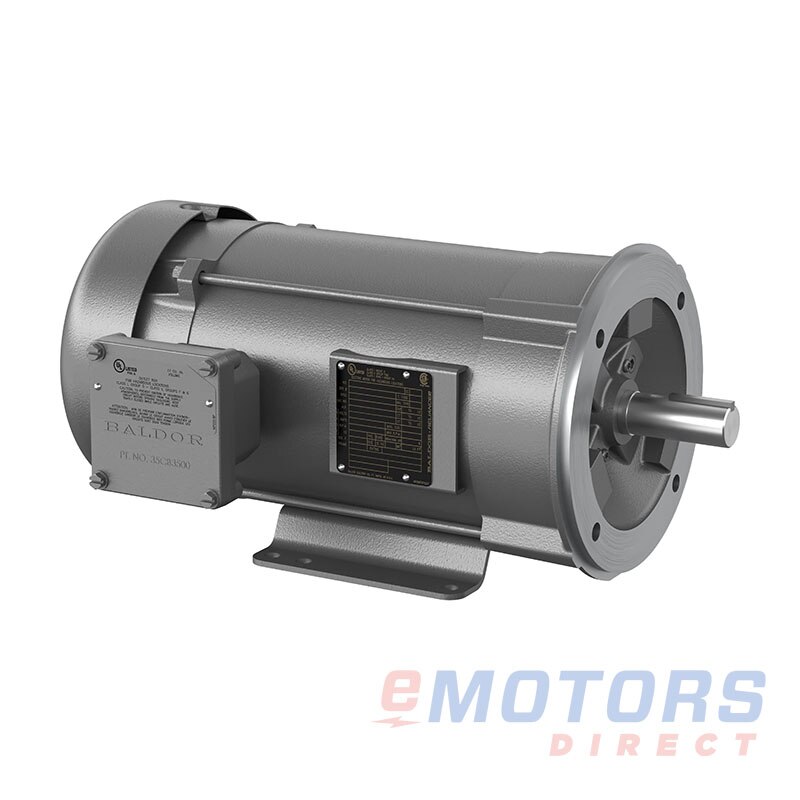

Baldor CXM18322T

Baldor · Explosion Proof, General Purpose, three phase, C-face foot mounted
3 HP 3450 182TC TEFC-XP 230V|460V Explosion Proof Motors for Hazardous Locations
Catalog Number: CXM18322T
Spec Number: 36-0000-0483
HP
3
RPM
3600
Voltage
230V, 460V
Frame
182TC
Phase
3
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor Explosion Proof General Purpose three-phase, C-face foot-mounted motor is built for safe and reliable operation in hazardous locations. It features a robust steel and cast iron frame for long-lasting durability, along with IP54 ingress protection to guard against dust and moisture. This motor includes a 1.15 service factor on 143T frame sizes and larger, and is rated inverter duty for models 1 Hp and above. It also provides thermal protection with auto overload for motors under 1 Hp and normally closed thermostats for those 1 Hp and up. With a threaded lead inlet and low-noise, vibration-dampening base, it’s ideal for fixed-speed use in fans, pumps, conveyors, and Division 1 hazardous areas.
Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Explosion Proof, General Purpose, three phase, C-face foot mounted

Features

  • Heavy-duty steel and cast iron frame construction for long-lasting durability
  • IP54 protection against dust and limited water exposure
  • 1.15 service factor for 143T frame sizes and above
  • Inverter duty rated for models 1 Hp and larger
  • Built-in auto thermal overload for motors under 1 Hp; normally closed thermostats for 1 Hp and up
  • Threaded lead inlet for secure and straightforward wiring
  • Vibration-dampening base design for quieter operation

Applications

  • Suitable for Division 1 hazardous locations as specified by the customer
  • Designed for consistent fixed-speed performance
  • Ideal for use with pumps, fans, and conveyor systems
Electrical Data
Rated Motor Output Power
3 HP
2.25 kW
Rated Motor Speed
3450 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
7.4/3.7 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
K
Nominal Efficiency
86.5
Nominal Power Factor
91
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
10:1
6
General Data
Frame
182TC
Enclosure
TEFC-XP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
17.49"
NEMA Design
A
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
52
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA EEV, UL
Country of Origin
USA
