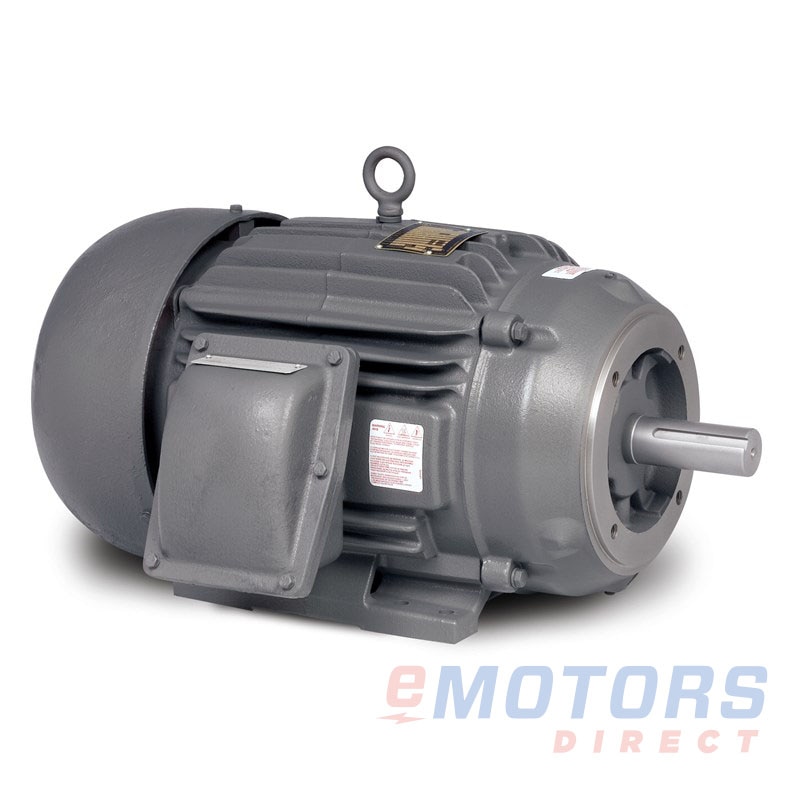

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor CXM251542T

Baldor · Explosion Proof, General Purpose, three phase, C-face foot mounted
15 HP 1765 254TC TEFC-XP 230V|460V Explosion Proof Motors
Catalog Number: CXM251542T
Spec Number: 09-0000-2929
HP
15
RPM
1800
Voltage
230V, 460V
Frame
254TC
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

The Baldor Explosion Proof General Purpose three-phase, C-face foot-mounted motor is built for safe and reliable operation in hazardous locations. It features a robust steel and cast iron frame for long-lasting durability, along with IP54 ingress protection to guard against dust and moisture. This motor includes a 1.15 service factor on 143T frame sizes and larger, and is rated inverter duty for models 1 Hp and above. It also provides thermal protection with auto overload for motors under 1 Hp and normally closed thermostats for those 1 Hp and up. With a threaded lead inlet and low-noise, vibration-dampening base, it’s ideal for fixed-speed use in fans, pumps, conveyors, and Division 1 hazardous areas.
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Save up to CAD$47.00 per year
Switching from a Standard Efficient to a Premium Efficient motor

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Explosion Proof, General Purpose, three phase, C-face foot mounted

Features

  • Heavy-duty steel and cast iron frame construction for long-lasting durability
  • IP54 protection against dust and limited water exposure
  • 1.15 service factor for 143T frame sizes and above
  • Inverter duty rated for models 1 Hp and larger
  • Built-in auto thermal overload for motors under 1 Hp; normally closed thermostats for 1 Hp and up
  • Threaded lead inlet for secure and straightforward wiring
  • Vibration-dampening base design for quieter operation

Applications

  • Suitable for Division 1 hazardous locations as specified by the customer
  • Designed for consistent fixed-speed performance
  • Ideal for use with pumps, fans, and conveyor systems
Electrical Data
Rated Motor Output Power
15 HP
11 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
30.40/36.20/15.20/18.10 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
H
Nominal Efficiency
92.4
Nominal Power Factor
83
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
254TC
Enclosure
TEFC-XP
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
26"
NEMA Design
A
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1-Configuration
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
1.625"
Shaft Length
4"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
3-Year
