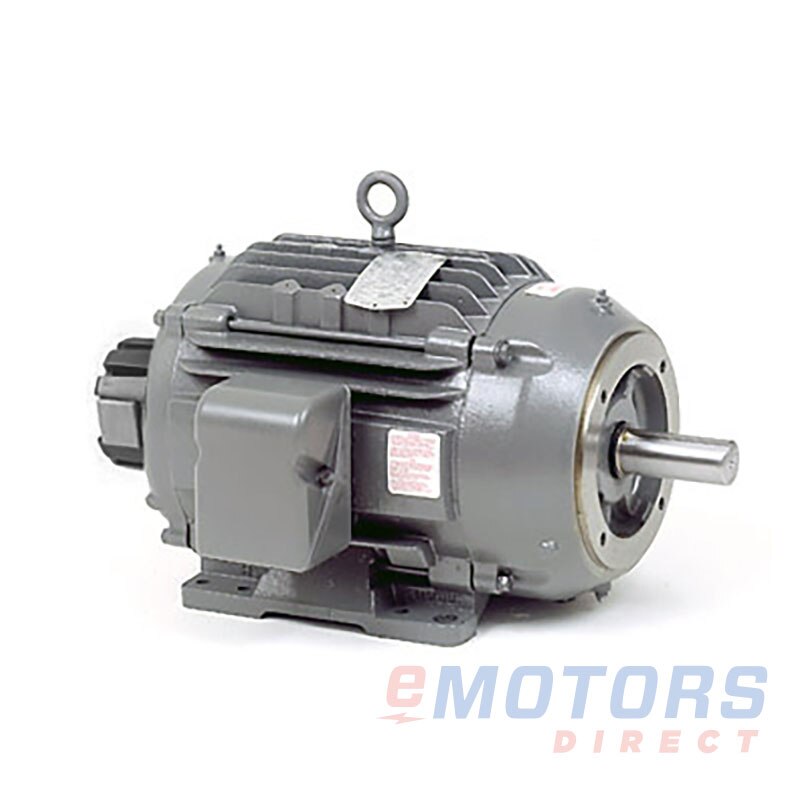

Baldor IDNM2237T

Baldor · 1000:1 Turndown
7 1/2HP 1800|5000 254TC TENV 230V|460V 1000:1 Turndown
Catalog Number: IDNM2237T
HP
7 1/2
RPM
1800
Voltage
230V, 460V
Frame
254TC
Phase
3
Enclosure
TENV
Material
Cast Iron
Mounting
C-Face / Rigid

Overview

1000:1 Turndown(RPM AC) motor is most suitable for tough variable speed industrial applications where high performance, and power density (compact size and weight) is most important.

CAD $2,338.09
Usually ships in 2 to 3 weeks
Flat Fee Shipping across Canada: $50.00
Need it Now?See our Cross-Referenced Matches for equivalent alternatives

Product Highlights

Cross-Referenced Matches (2)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Baldor IDWNM22937T

    7 1/2HP 1800-5000 254TC TENV 230V|460V 1000:1 Turndown

    CAD $3,650.21
    Usually ships in 2 to 3 weeks
  • Baldor ZDWNM22937T

    7 1/2 HP 1800-5000 254TC Fr TENV 1000:1 Turndown

    CAD $5,006.24
    Usually ships in 2 to 3 weeks
More Information

Description

Industrial electric motors are available for most general purpose applications and processes. However, some AC Variable Speed applications require constant torque at zero speed. Inverter/Vector motors are designed specifically for adjustable speed applications in a standard NEMA Frame motor. Additionally, the AC Inverter/Vector Motors can be ran across the line for bypass operation and can deliver a 1000:1 Speed Range in a standard TENV or TEBC Enclosure.

Features

  • Extensive HP Range 1/3 - 500hp
  • B Rise
  • IEC
  • 1000:1 CT
  • Low Noise
  • 841XL Features
  • Cast iron Frame Construction
  • Stock Availability
  • Corona Free insulation
  • Class F Insulation
  • 200% torque overload for one minute at base speed
  • Insulated Bearings
  • Constant horsepower 1.5 times base speed
  • Special Encoder provisions

Common Industries

  • Rubber
  • Automotive
  • Metals
  • Plastics
  • Converting
  • Pulp and Paper
  • Oil and Gas

Common Applications

  • Winders
  • Positioning
  • Extruders,
  • Web Processing
  • Oil Drilling
  • Induction Servo Spindle
  • Test Stands-low / high speed
