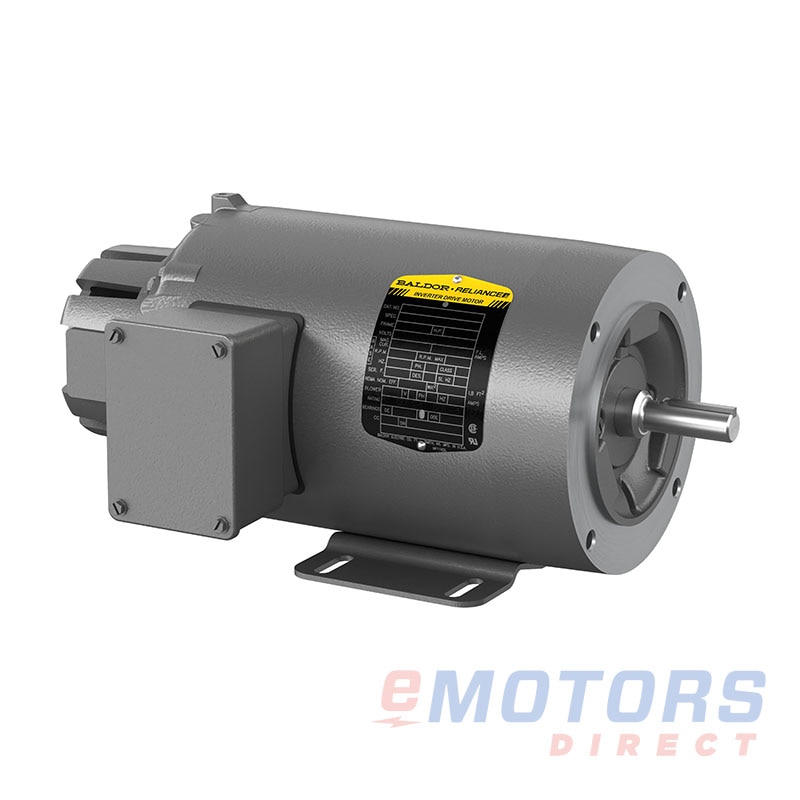

Baldor IDNM3538

Baldor · 1000:1 Turndown
1/2 HP 1800|6000 56C TENV 230V|460V 1000:1 Turndown
Catalog Number: IDNM3538
HP
1/2
RPM
1800
Voltage
230V, 460V
Frame
56C
Phase
3
Enclosure
TENV
Material
Rolled Steel
Mounting
C-Face / Rigid

Overview

1000:1 Turndown(RPM AC) motor is most suitable for tough variable speed industrial applications where high performance, and power density (compact size and weight) is most important.

CAD $440.57
Available for Delivery
Flat Fee Shipping across Canada: $25.00
Enter your postal code here for delivery dates.
Local Pickup
Edmonton, AB:
Out of Stock
Canada, CA:
In Stock

Product Highlights

Cross-Referenced Matches (8)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Nidec UN12T2BC

    1/2 HP 1800 56C TENV 230/460V INVERTER RATED 1000:1

    CAD $420.00
    Ships next business day

  • Baldor IDCSWDM3538

    1/2 HP 1800-6000 56C TENV 230V|460V 1000:1 Turndown

    CAD $1,370.16
    Ships next business day

  • Marathon Y360

    1/2 HP 1725 56C TENV 230V|460V 1000:1 Turndown

    CAD $313.41
    Please contact us for delivery dates

  • Marathon Y504

    1/2 HP 1725 56C TENV 230V 1000:1 Turndown

    CAD $313.41
    Please contact us for delivery dates

  • Marathon Y534

    1/2 HP 1735 56C TENV 230V|460V 1000:1 Turndown

    CAD $481.58
    Please contact us for delivery dates

  • Marathon Y280

    1/2 HP 1725 56C TENV 230V|460V 1000:1 Turndown

    CAD $966.42
    Please contact us for delivery dates

  • Baldor IDVSNM3538

    1/2 HP 1800|6000 56C TENV 230V|460V 1000:1 Turndown

    CAD $440.57
    Usually ships in 2 to 3 weeks

  • Baldor ZDVSNM3538

    1/2 HP 1800|6000 56C Fr TENV 1000:1 Turndown

    CAD $1,626.24
    Usually ships in 2 to 3 weeks
More Information

Description

Industrial electric motors are available for most general purpose applications and processes. However, some AC Variable Speed applications require constant torque at zero speed. Inverter/Vector motors are designed specifically for adjustable speed applications in a standard NEMA Frame motor. Additionally, the AC Inverter/Vector Motors can be ran across the line for bypass operation and can deliver a 1000:1 Speed Range in a standard TENV or TEBC Enclosure.

Features

  • Extensive HP Range 1/3 - 500hp
  • B Rise
  • IEC
  • 1000:1 CT
  • Low Noise
  • 841XL Features
  • Cast iron Frame Construction
  • Stock Availability
  • Corona Free insulation
  • Class F Insulation
  • 200% torque overload for one minute at base speed
  • Insulated Bearings
  • Constant horsepower 1.5 times base speed
  • Special Encoder provisions

Common Industries

  • Rubber
  • Automotive
  • Metals
  • Plastics
  • Converting
  • Pulp and Paper
  • Oil and Gas

Common Applications

  • Winders
  • Positioning
  • Extruders,
  • Web Processing
  • Oil Drilling
  • Induction Servo Spindle
  • Test Stands-low / high speed
