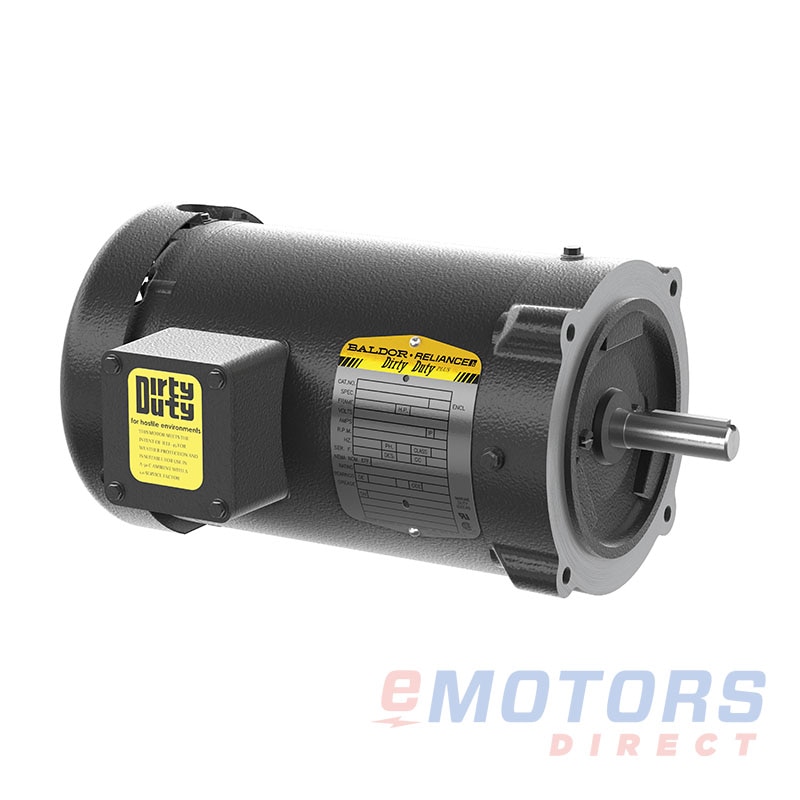

Baldor VDM3537

Baldor · Dirty Duty Plus, 3HP, TEFC, C-face footless
1/2 HP 3450 56C TEFC 230V|460V General Purpose AC Motors
Catalog Number: VDM3537
Spec Number: 34M809R421G1
HP
1/2
RPM
3600
Voltage
230V, 460V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor Dirty Duty Plus 3HP, three-phase motor with a Totally Enclosed Fan-Cooled (TEFC) design is built to provide reliable and efficient performance in the most challenging industrial environments. Its TEFC construction offers excellent protection against dust, dirt, and moisture, ensuring durability and consistent operation in harsh conditions. The C-face configuration enables easy mounting and alignment with various equipment, while the footless design provides flexibility for installation in confined spaces. Designed for long-lasting performance, the Dirty Duty Plus motor is perfect for applications that require dependable power and durability, even in dirty or demanding environments.
Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Dirty Duty Plus, 3HP, TEFC, C-face footless

Features

  • Durable cast iron endplates and conduit box for enhanced strength
  • 300 series stainless steel shaft extension for corrosion resistance
  • Two-part epoxy paint system that passes over 2,000 hours of salt fog testing (per ASTM B 117)
  • Permanently lubricated, double-sealed ball bearings for reduced maintenance
  • IP56-rated enclosure with labyrinth shaft seals, gasketed conduit box, and cover for superior protection
  • Inverter Duty rated for compatibility with variable frequency drives
  • Meets IEEE 45 standards, as indicated on the nameplate
  • Class F insulation with a 1.15 service factor, operating within Class "B" temperature limits at rated horsepower

Applications

  • Chemical, oil, and gas industries
  • Coastal marine environments
  • Pulp and paper, as well as forest product industries
Electrical Data
Rated Motor Output Power
1/2 HP
.375 kW
Rated Motor Speed
3450 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
1.8/0.9 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
1.7
Service Factor
1.25
KVA Code
P
Nominal Efficiency
68
Nominal Power Factor
75
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.35"
NEMA Design
B
Degree of Protection (IP)
IP56
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
51 °C
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.88"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cCSAus, UR
Country of Origin
USA
Warranty
3-Year
