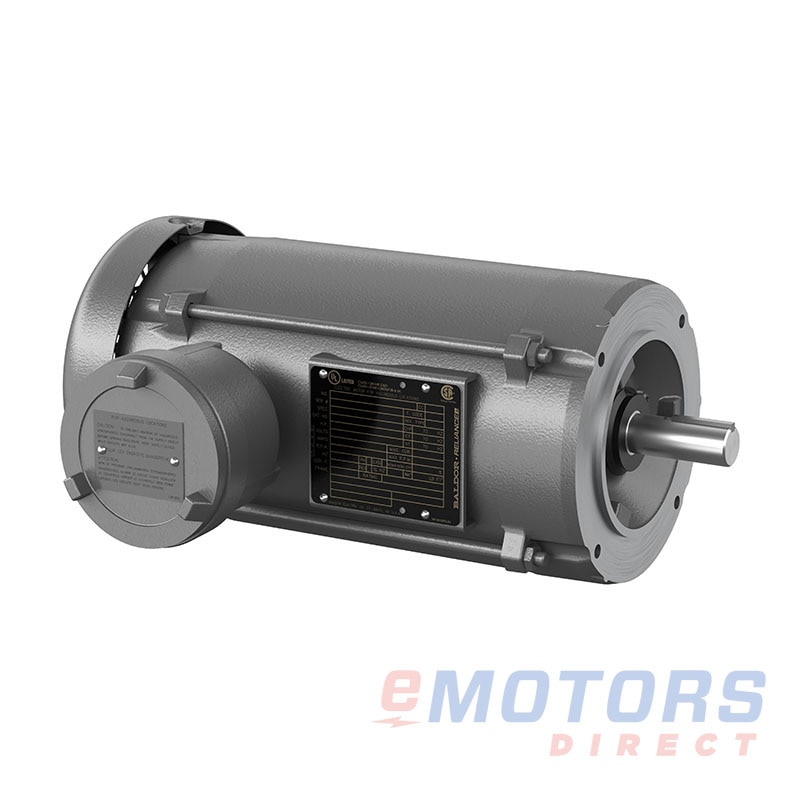

Baldor VDRX14144T

Baldor · Explosion Proof, Drill Rig Duty, three phase, C-face Footless
1 HP 1770 143TC TEFC-XP 230V|460V Explosion Proof Motors for Hazardous Locations
Catalog Number: VDRX14144T
Spec Number: 35-0000-1331
HP
1
RPM
1800
Voltage
230V, 460V
Frame
143TC
Phase
3
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor Explosion Proof Drill Rig Duty three-phase, C-face footless motor is designed to withstand the harsh conditions of hazardous environments. Built with a durable steel and cast iron frame, it offers long-lasting reliability. The motor features a 1.15 service factor with Class F insulation, making it suitable for 40°C ambient temperatures, and it can operate in environments up to 55°C at a 1.0 service factor. Inverter duty rated, it includes DE shaft slingers and UL-approved breather drains for enhanced protection against contaminants. Additionally, the motor is equipped with normally closed thermostats for thermal protection and a threaded lead inlet for secure wiring. With an IP55-rated enclosure, this motor is ideal for bulk fuel terminals, Division 1 hazardous areas, transfer stations, and onshore and offshore drill rig services, supporting both fixed and variable speed operations.
Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Explosion Proof, Drill Rig Duty, three phase, C-face Footless

Features

  • Durable steel and cast iron frame construction for long-lasting performance
  • 1.15 service factor with Class F insulation, rated for 40°C ambient temperature
  • Capable of handling up to 55°C ambient temperature at a 1.0 service factor
  • Inverter duty rated for reliable operation in various settings
  • DE shaft slinger and UL-approved breather drains for enhanced protection
  • Equipped with normally closed thermostats for thermal safety
  • Threaded lead inlet for secure and easy wiring installation
  • IP55-rated enclosure, with this specification clearly marked on the nameplate

Applications

  • Suitable for bulk fuel terminals
  • Designed for Division 1 hazardous locations as per customer specifications
  • Ideal for transfer stations
  • Supports both fixed and variable speed operation
  • Perfect for onshore and offshore drill rig service
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1770 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
3.2/1.6 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
3.2
Service Factor
1
KVA Code
N
Nominal Efficiency
85.5
Nominal Power Factor
69
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
10:1
6
General Data
Frame
143TC
Enclosure
TEFC-XP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.34"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
24
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA EEV, UL
Country of Origin
USA
Warranty
-
