Leeson 098008.00

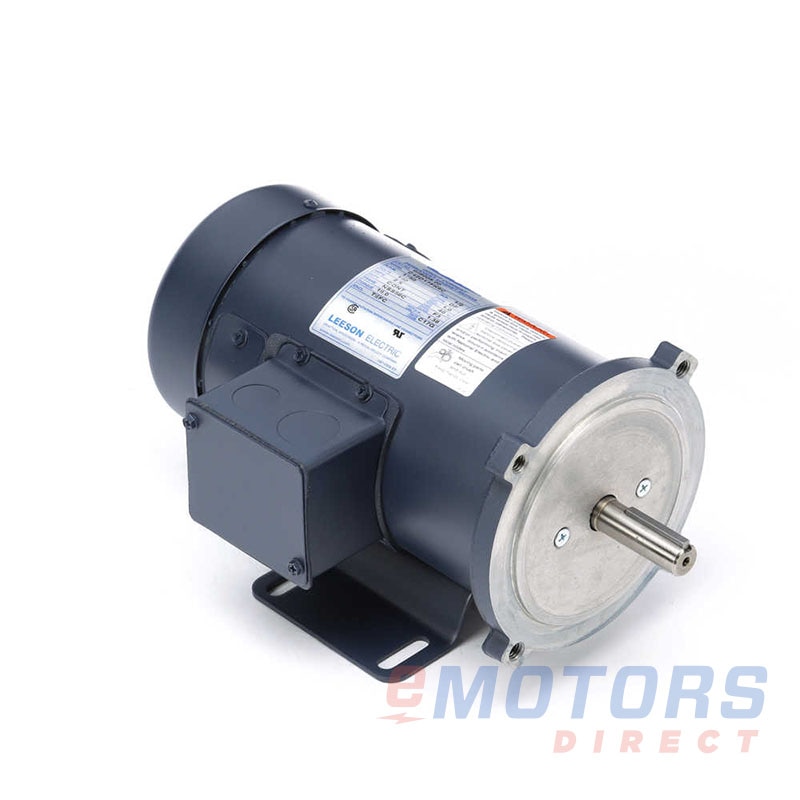

Leeson · Totally Enclosed DC Motor
1/2 HP 1750 56C TEFC 180V Permanent Magnet DC
Catalog Number: 098008.00
Model Number: C42D17FK6
HP
1/2
RPM
1800
Voltage
180V
Frame
56C
Phase
DC
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Leeson’s DC motors are ideal for applications requiring constant torque and variable speed, like conveyor systems and mixers. They’re available in a selection of frame sizes and c-face, rigid, or round body mounting. Match your application’s requirements with HP, RPM, and voltage rating options.

CAD$620.20
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: In Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Description

Permanent magnet DC motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities.

Feature

  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Removable Bolt-on base
  • NEMA C-face designs
  • 115 or 230 volt input power ratings – 90 / 180 volt output
  • Capable of Dynamic braking
  • PWM or SCR type controller rated
  • High Starting Torque

eMotors Direct's stock of DC electric motors are designed for use in many industries, particularly where direct current is used as the power source. These small DC motors are best suited for applications where low-speed and high torque are required and where load stays relatively the same. They're known for their ability to provide consistent torque throughout their entire speed range, but, keep in mind, DC motors are sensitive to changes in load.

Due to their simpler design, DC motors offer the chance at higher energy efficiency and are much easier to control than their counterpart, the induction motor. Amongst our stock, you’ll find standard brushed and BLDC (brushless) electric motors. Brushless electric motors are designed without the commutator or brushes, removing two of the main wearable components and in turn reducing the required maintenance time and costs.

Shop DC electric motors online through our Canadian website today. With over 400 SKUs and convenient filtering options, you can easily find the motor you're searching for.

Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1/2 HP
0.37 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
180V
Rated Motor Current
2.5 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
83.7
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
25lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.81"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
