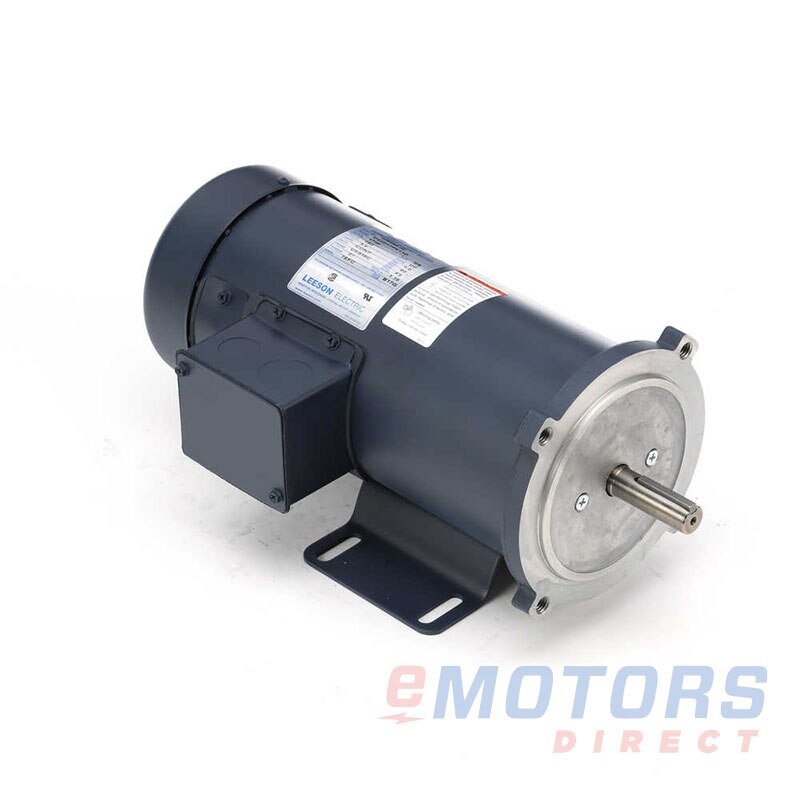

Leeson 098069.00

Leeson · Totally Enclosed DC Motor
3/4 HP 1750 56C TEFC 180V Permanent Magnet DC
Catalog Number: 098069.00
Model Number: C42D17FK11
HP
3/4
RPM
1800
Voltage
180V
Frame
56C
Phase
DC
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Leeson’s DC motors are ideal for applications requiring constant torque and variable speed, like conveyor systems and mixers. They’re available in a selection of frame sizes and c-face, rigid, or round body mounting. Match your application’s requirements with HP, RPM, and voltage rating options.

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

Permanent magnet DC motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities.

Feature

  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Removable Bolt-on base
  • NEMA C-face designs
  • 115 or 230 volt input power ratings – 90 / 180 volt output
  • Capable of Dynamic braking
  • PWM or SCR type controller rated
  • High Starting Torque
Electrical Data
Rated Motor Output Power
3/4 HP
.56 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
180V
Rated Motor Current
3.8 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
82.1
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.81"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
